Shape specifications

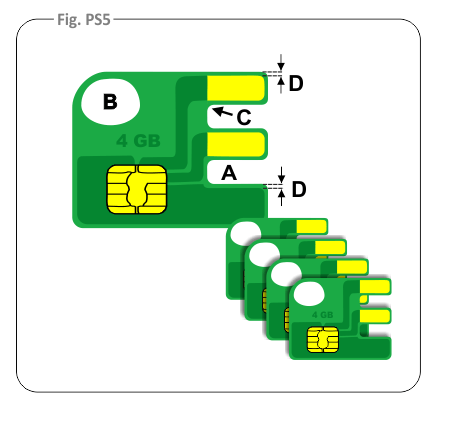

Milling is used to cut round shapes or freeform PCBs (details A and B)
As standard, cutter diameter = 1.6mm
The minimum radius depends on the cutter used (detail C):
Cutter 1.6mm -> Radius = 0.8 mm mini
Cutter 0.8mm -> Radius = 0.4 mm mini
Minimum space between the copper and the edge of the card: 0.3 mm (detail D) When the PCBs are milled and delivered as unit boards, there is no residual attachment points. The shape is perfect.
The minimum radius depends on the cutter used (detail C):
Cutter 1.6mm -> Radius = 0.8 mm mini
Cutter 0.8mm -> Radius = 0.4 mm mini
Minimum space between the copper and the edge of the card: 0.3 mm (detail D) When the PCBs are milled and delivered as unit boards, there is no residual attachment points. The shape is perfect.
